Algorithms for Unexploitable Hypersonic Weapon Defense

Professor Zachary Sunberg

July 13th, 2022

BLUF

  • The maneuverability of hypersonic missiles fundamentally changes their ability to overcome defenses.
  • Game theory (GT) is a mathematical framework for reasoning about interactions.
    • If there is partial observability, the best strategy may be stochastic (i.e. bluffing).
  • We need to outsmart opponents with hypersonic weapons in 3 domains:
    • Onboard vehicle control (D1)
    • Battlespace management (D2)
    • Arsenal design (D3)
  • Existing GT approaches have limitations for hypersonic missile defense
  • We can develop new mathematical tools and algorithms for hypersonic missile defense
    • Double Oracle with POMDPs
      • Differential games (for D1)
      • Tree search for (for D2)
    • Scenario-based GT planning (for D2)

Defending against Maneuverable Hypersonic Weapons: the Challenge

Ballistic

Maneuverable Hypersonic

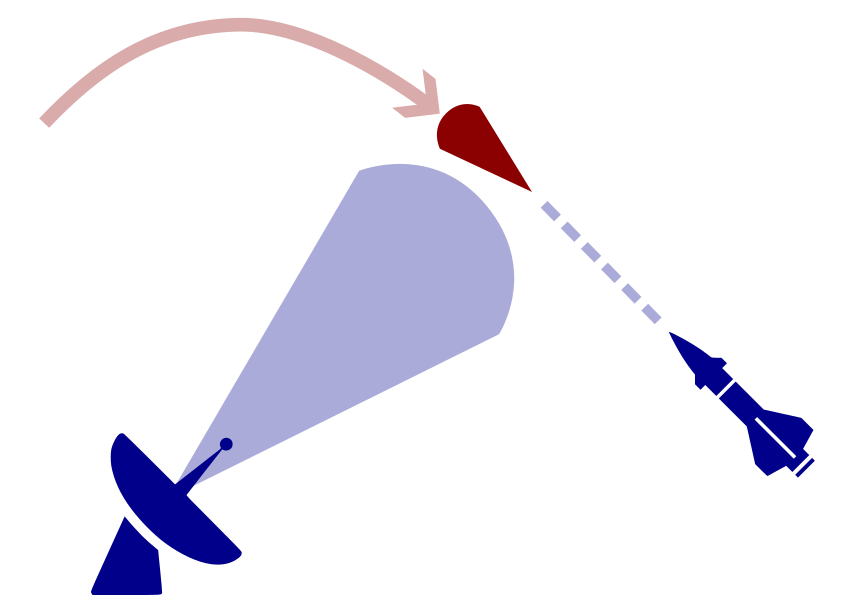

  1. Sense
  2. Estimate
  3. Intercept

Every maneuver involves tradeoffs

  • Energy
  • Targets
  • Intentions

Game Theory

Nash Equilibrium: All players play a best response.

Optimization Problem

\(\text{subject to} \quad g(x) \geq 0\)

\(\text{maximize} \quad f(x)\)

Game

Player 1: \(U_1 (a_1, a_2)\)

Player 2: \(U_2 (a_1, a_2)\)

Collision

Example: Airborne Collision Avoidance






Player 1

Player 2

Up

Down

Up

Down

-6, -6

-1, 1

1, -1

-4, -4

Collision

Mixed Strategies

Nash Equilibrium \(\iff\) Zero Exploitability

\[\sum_i \max_{\pi_i'} U_i(\pi_i', \pi_{-i})\]

No Pure Nash Equilibrium!

Instead, there is a Mixed Nash where each player plays up or down with 50% probability.

If either player plays up or down more than 50% of the time, their strategy can be exploited.

Exploitability (zero sum):

Hypersonic Missile Defense (simplified)






Attacker

Defender

Up

Down

Up

Down

-1, 1

1, -1

1, -1

-1, 1

Collision

Collision

Strategy (\(\pi_i\)): probability distribution over actions

Three Domains for GT in Hypersonic Defense

Domain 1: Onboard Vehicle Control

Domain 2: Battlespace Management

Domain 3: Arsenal Design

Existing Tools

Differential Games

  • High precision control
  • Assumes full observability

Deep Reinforcement Learning

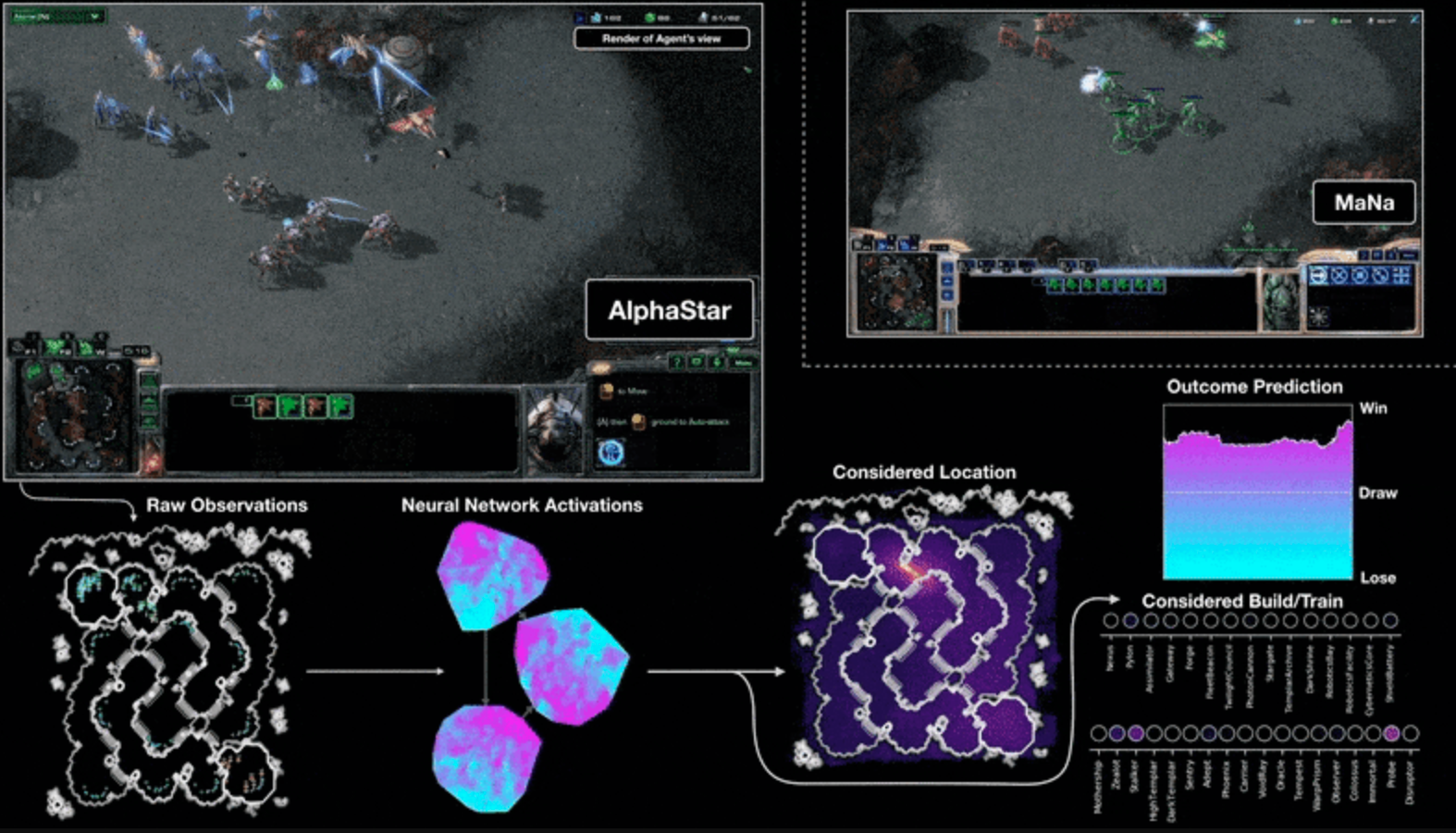

Image: DeepMind

  • Superhuman Performance
  • Solves Biggest Problems
  • Slow Offline Training

Incomplete Information Game Theory

  • Mixed Strategies/Bluffing
  • Discrete Board-game-like Problems
  • Computational Load

*Partially observable Markov decision process

POMDP* Planning

  • Partial Observability
  • Single Player (just an optimization problem)

Innovation 1: Double Oracle (DO) with POMDPs








Default Strategy Profile

Mix Pure Strategies

Add Best Response to Pure Strategy Set

Compute Best Response

(Solve POMDP)

[McAleer et al., 2022]

\[\hat{x}', \Sigma' = \text{Filter}(\hat{x}, \Sigma, y, \pi_1)\]

\[u = \tilde{u} -K(\hat{x} - \tilde{x})\]

DO Applied to Domain 1: Online Differential Games

[Peters, Sunberg, et al. 2020]

2 ms solve time with warm starting

DO Applied to Domain 1: Online Differential Games

[Peters et al. 2022]

< 3 min offline training, 2 ms online computation

DO Applied to Domain 2: Solving POMDPs Online

100-1000 ms online planning

[Sunberg and Kochenderfer, 2018]

[Sunberg and Kochenderfer, 2022]

[Gupta, Hayes, and Sunberg, 2022]

[Lim, Sunberg, et al. (in prep)]

Innovation 2: Scenario-Based GT Planning

Issue: Current counterfactual regret (CFR) techniques have large computation requirements because of high variance due to random sampling

Solution: Scenario-based GT planning (idea borrowed from POMDP research)

[Somani et al. 2017]

[Garg et al. 2019]

What We Need

  • Funding
    • Students
      (~$100k per year incl. overhead)
    • Faculty and Staff
    • Computing Resources
  • Guidance/representative models
    • Unclassified for most work
    • Pipeline to high-fidelity simulation

Notional timeline (2 Faculty, 3 Students):

Apply existing diff. game approaches

Develop and implement feedback diff. game algorithms

Teach advanced dynamic GT class

Months:

Test in high fidelity simulation

Diff. games for onboard control

POMDP DO for battlespace mgmt

Scenario-based GT Planning

6

12

18

24

32

36

implement on representative PO Markov game

Develop decentralized composable algorithm

Other

Organize workshop at conference

Develop and imlement basic algorithm

Test in realistic simulation

Develop Mathematical Theory

Test in realistic simulation

Deliverables: Reference implementations

Hybrid Games

Student Internship at contractor

Additional Material

Our Expertise

Game Theory for Space Domain Awareness

Our Expertise

Open Source Julia Software

POMDPs.jl - An interface for defining and solving MDPs and POMDPs

  • Executes fast as C
  • As easy to write and read as Python/MATLAB

Our Technical Approach

  1. Partially Observable Markov Games
  2. Principled Tractable Approximations
  3. Online Solutions First
  4. Focus on Composability
  5. Fast Prototyping in Julia

Research Model

Mathematical Frameworks

Algorithm Development

Realistic Simulation

Physical Tests

Proposed Research

Develop

  1. Mathematical Frameworks
  2. Algorithms

to compute unexploitable strategies for hypersonic weapon defense systems

Probability distributions describing what all players should do

Game Theory

Nash Equilibrium: All players play a best response.

Example: Stag Hunt

Optimization Problem

\(\text{subject to} \quad g(x) \geq 0\)

\(\text{maximize} \quad f(x)\)

Game

Player 1: \(U_1 (a_1, a_2)\)

Player 2: \(U_2 (a_1, a_2)\)

Strategy (\(\pi_i\)): probability distribution over actions






Player 1

Player 2

Stag

Hare

Stag

Hare

10, 10

1, 8

5, 5

8, 1
